How to Perform Sequence Alignment

Overview

This vignette demonstrates how to perform pairwise sequence alignment using Rust-backed tools in the rustytools package. We apply this functionality to align CDR3 nucleotide sequences from single-cell VDJ data and identify leukemic clones in a suspected relapse of B-ALL. This is followed by functional analysis, including expression of CDKN2A, to validate biological distinctions.

Setup

We begin by loading the necessary libraries.

rm(list = ls())
suppressPackageStartupMessages({
  library(rustytools)
  library(Seurat)
  library(scCustomize)
})

Data Loading

We load the Seurat object for the patient sample (seu) and a reference bone marrow dataset (seur). The reference will provide color mappings for visualization.

seu <- readRDS("/Users/sfurlan/Library/CloudStorage/OneDrive-SharedLibraries-FredHutchinsonCancerCenter/Furlan_Lab - General/experiments/patient_marrows/ALL_5336/cds/240416_cds.RDS")

if (grepl("^gizmo", Sys.info()["nodename"])) {
  ROOT_DIR2 <- "/fh/fast/furlan_s/grp/data/ddata/BM_data"
} else {
  ROOT_DIR2 <- "/Users/sfurlan/Library/CloudStorage/OneDrive-SharedLibraries-FredHutchinsonCancerCenter/Furlan_Lab - General/datasets/Healthy_BM_greenleaf"
}

seur <- readRDS(file.path(ROOT_DIR2, "230329_rnaAugmented_seurat.RDS"))

Visualizing VDJ Predictions

We plot the predicted cell types using vmR_pred and color them according to the reference dataset.

DimPlot(seu, group.by = "vmR_pred", cols = seur@misc$colors)

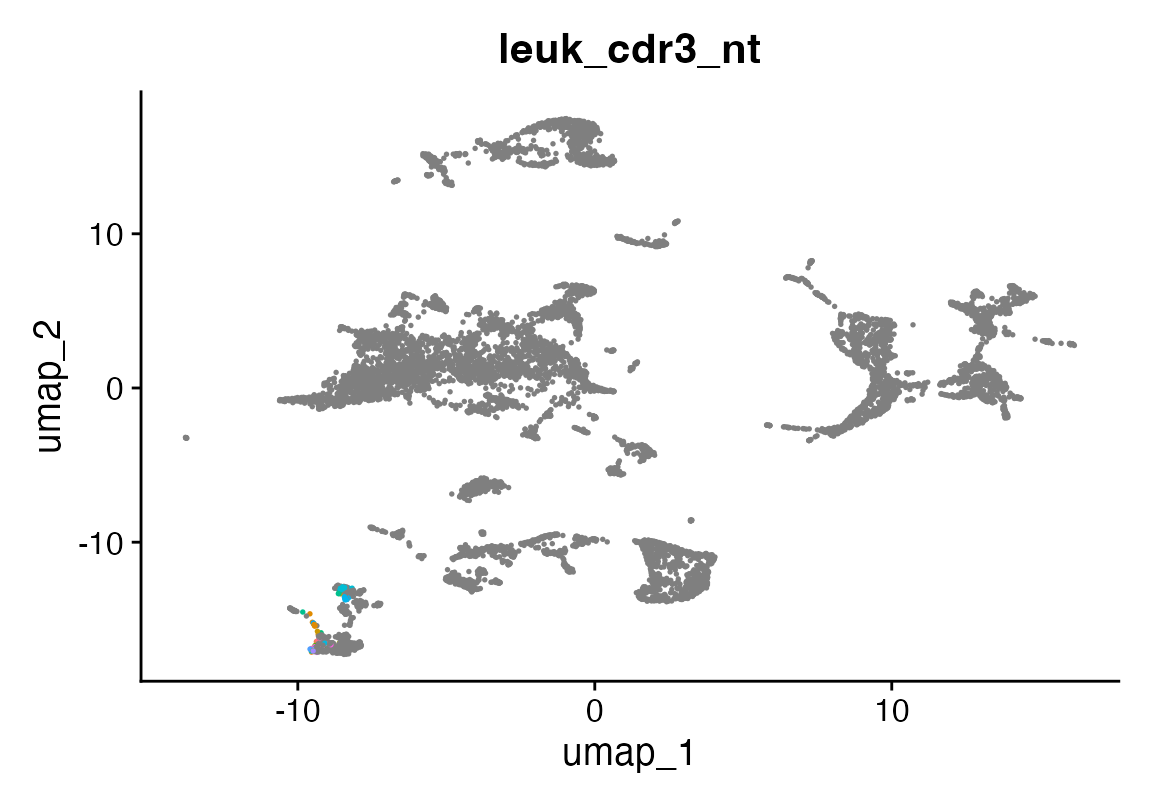

Next, we highlight putative leukemic clones based on cluster identity:

seu$leuk_cdr3_nt <- NA
seu$leuk_cdr3_nt[seu$seurat_clusters %in% c(11, 13)] <- seu$cdr3_nt[seu$seurat_clusters %in% c(11, 13)]
DimPlot(seu, group.by = "leuk_cdr3_nt") + NoLegend()

putative <- names(table(seu$leuk_cdr3_nt)[order(-table(seu$leuk_cdr3_nt))])

Sequence Alignment with Rust

We align VDJ-derived sequences against known leukemic clones obtained from Adaptive ClonoSEQ data. We use the align() function from rustytools, which is backed by the bio crate from Rust for high-performance alignment.

# Adaptive-derived CDR3 sequences
cloneC <- "CAGGAACACCTCCATAAGCACAGCCTACATGGAGCTGAGCAGCCTGAGATCTGAGGACACGGCCGTGTATTACTGTGCGAGAGGCCTAACCCACACCCACCCCCTACTTATTGTAGTAGTACCAGCTGCTATGACTACTGGGGCCAGGGAACC"
cloneB <- "CGCGGACAAATCCACGAGCACAGCCTACATGGAGCTGAGCAGCCTGAGATCTGAGGACACGGCCGTGTATTACTGTGCGCGGCGGACTCCGTATTACTATGGTTCGGGGAGTTATACTACTACGGTATGGACGTCTGGGGCCAAGGGACC"
cloneD <- "GATGTTGGGGTTTATTACTGCATGCAAGGTACACACTGGCCCAACCTAGTGGCAGCCCAGGG"
cloneE <- "CTGATTATTACTGTGAGACCGGGACCAAGC"

# Compute alignment scores
seu$cloneC_score <- sapply(seu$cdr3_nt, function(seq) align(seq, cloneC, atype = "local", verbose = FALSE))
seu$cloneB_score <- sapply(seu$cdr3_nt, function(seq) align(seq, cloneB, atype = "local", verbose = FALSE))
seu$cloneD_score <- sapply(seu$cdr3_nt, function(seq) align(seq, cloneD, atype = "local", verbose = FALSE))
seu$cloneE_score <- sapply(seu$cdr3_nt, function(seq) align(seq, cloneE, atype = "local", verbose = FALSE))

Alignment Results Visualization

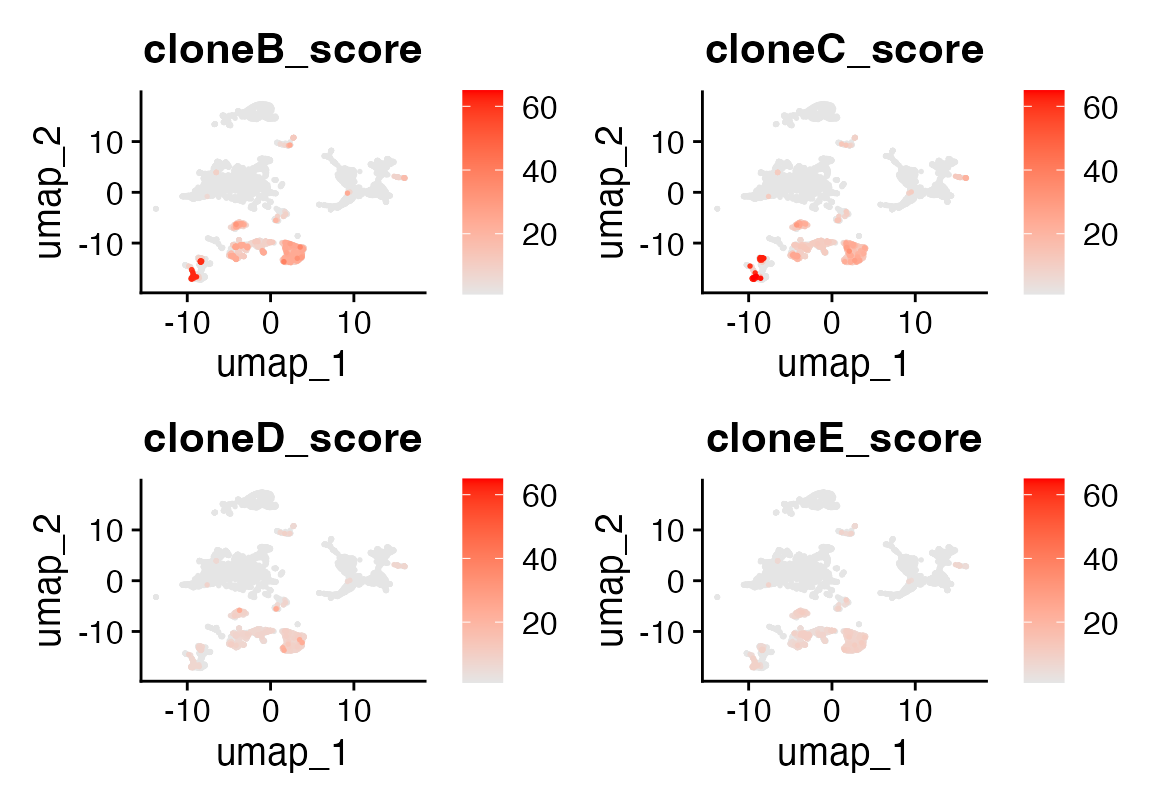

We visualize the alignment scores on the UMAP embedding:

FeaturePlot(seu, features = c("cloneB_score", "cloneC_score", "cloneD_score", "cloneE_score"),
            order = TRUE, keep.scale = "all",
            cols = c("grey90", "red"), min.cutoff = "q20")

We can compare specific alignments with Biostrings::pairwiseAlignment() to validate alignment quality:

Biostrings::pairwiseAlignment(putative[1], cloneC, type = "global-local")

## Global-Local PairwiseAlignmentsSingleSubject (1 of 1)
## pattern:      TGTGCGAGATCAGAGAGGCCTAACCCACACCC...TTGTAGTAGTACCAGCTGCTATGACTACTGG
## subject: [74] TGTGCGAGA-------GGCCTAACCCACACCC...TTGTAGTAGTACCAGCTGCTATGACTACTGG
## score: 96.75946

Biostrings::pairwiseAlignment(putative[2], cloneB, type = "global-local")

## Global-Local PairwiseAlignmentsSingleSubject (1 of 1)
## pattern:      TGTGCGAGCTCAGGGGTATACCAC-----GCG...GGAGTTATACTACTACGGTATGGACGTCTGG
## subject: [50] TCTGAGGACACGGCCGTGTATTACTGTGCGCG...GGAGTTATACTACTACGGTATGGACGTCTGG
## score: 49.77611

Functional Confirmation

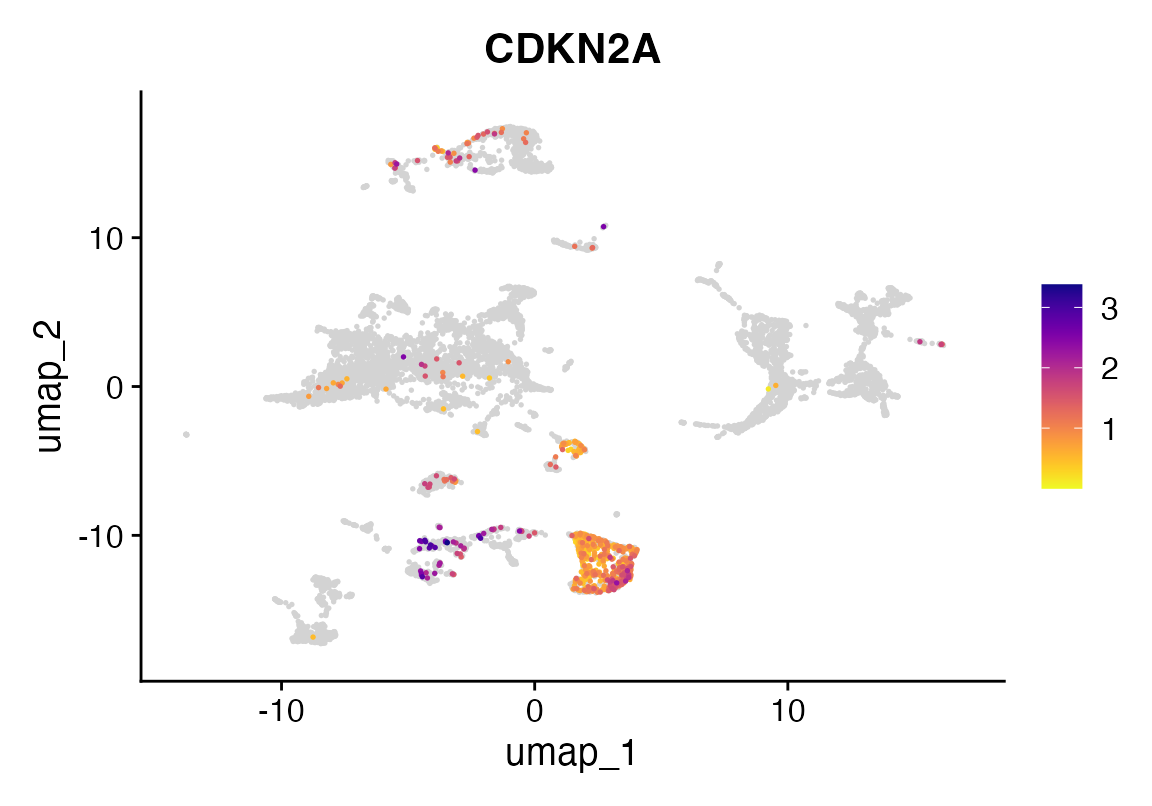

To validate the leukemic identity of aligned cells, we visualize CDKN2A expression. Loss of CDKN2A is a known event in high-risk B-ALL and may support the leukemic phenotype of aligned cells.

FeaturePlot_scCustom(seu, features = "CDKN2A")

Conclusion

Using Rust-accelerated sequence alignment in rustytools, we can rapidly screen thousands of VDJ sequences for similarity to leukemic clones and validate findings through gene expression. This approach is particularly useful in relapsed or ambiguous cases of B-ALL, where clonal detection is critical.

2024-06-04
